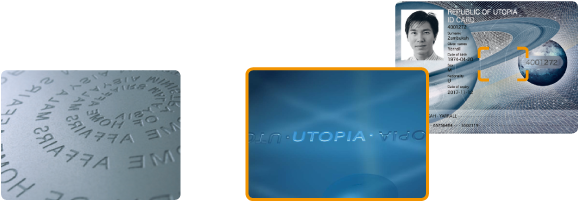

Micro lettering

To the naked eye it is just a line, but magnified it is a microcosm. With a minimum font height, we can produce micro lettering really tiny that can only be read with a magnifying glass.

  • Raised and indented versions possible.
  • Specialized in irregular intervals, e.g. one time turned, one time mirrored, one time single letter turned.

services_Micro-lettering1

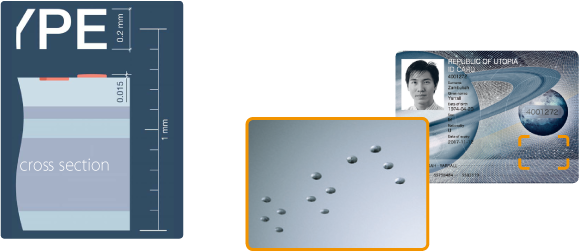

Braille lettering

Braille lettering is produced in the same lamination step. No hot stamping necessary! Typical Braille dot height 140-160 µm (according to ISO standard).

services_Micro-lettering2



Technical information micro and Braille lettering

Minimum font height 160 µm.
Minimum line width 25 µm.
Typical height of raised lettering 15µm.
Typical depth of indented lettering 15 µm.
